Practice Organ

My first interest in organ building was the manufacture of new organs, hence my move to Northampton in 2000 to work for Ken Tickell.

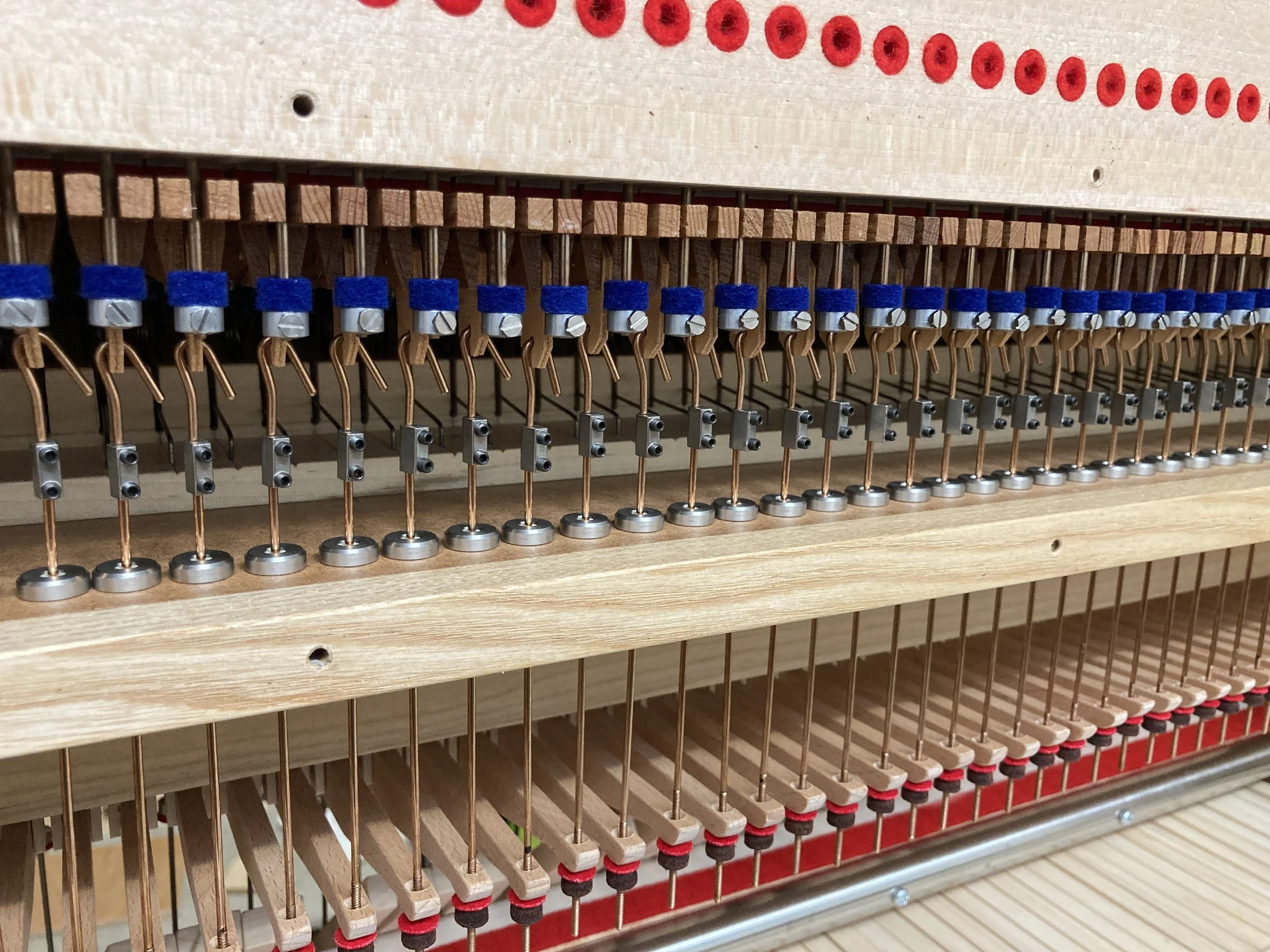

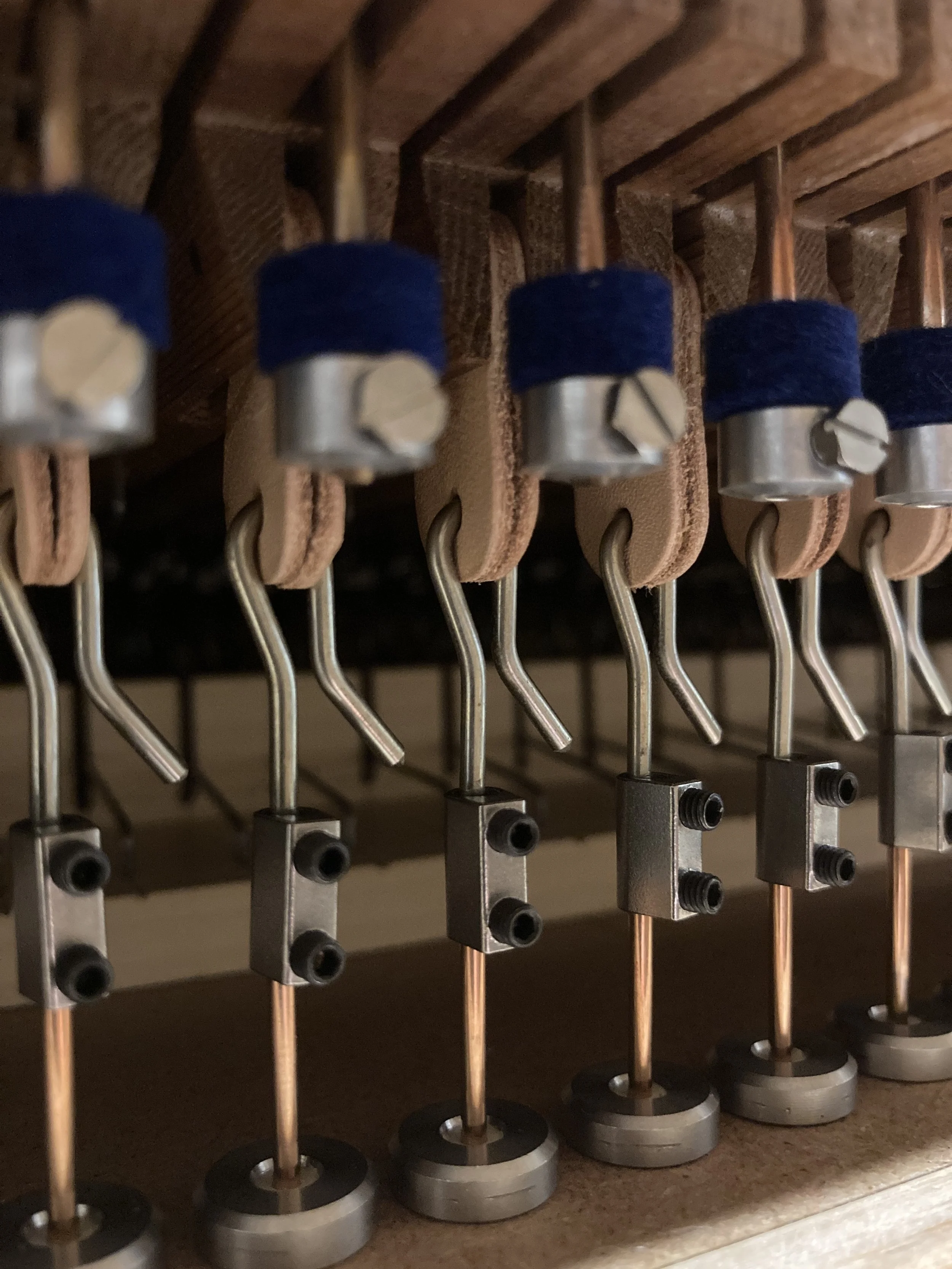

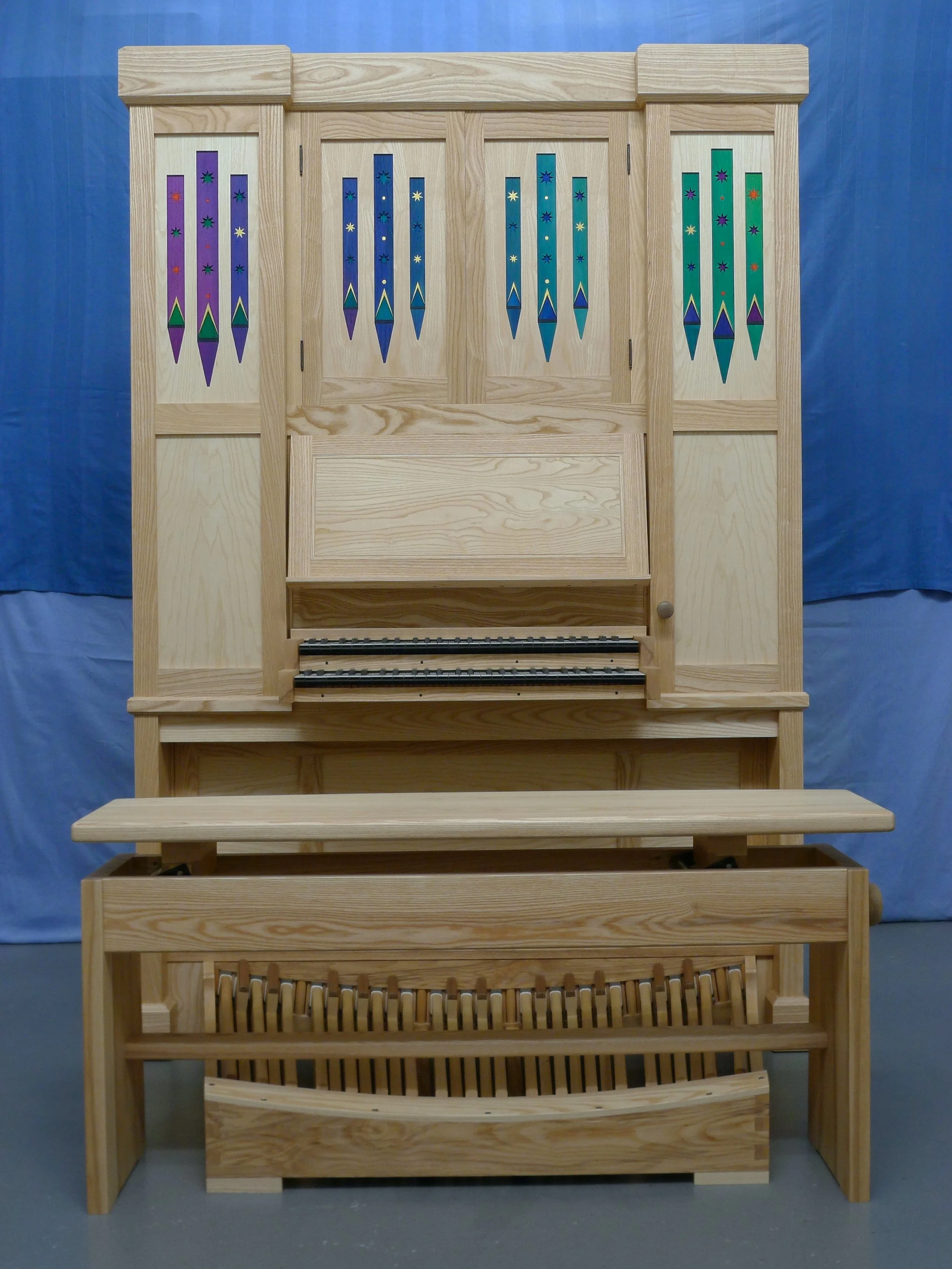

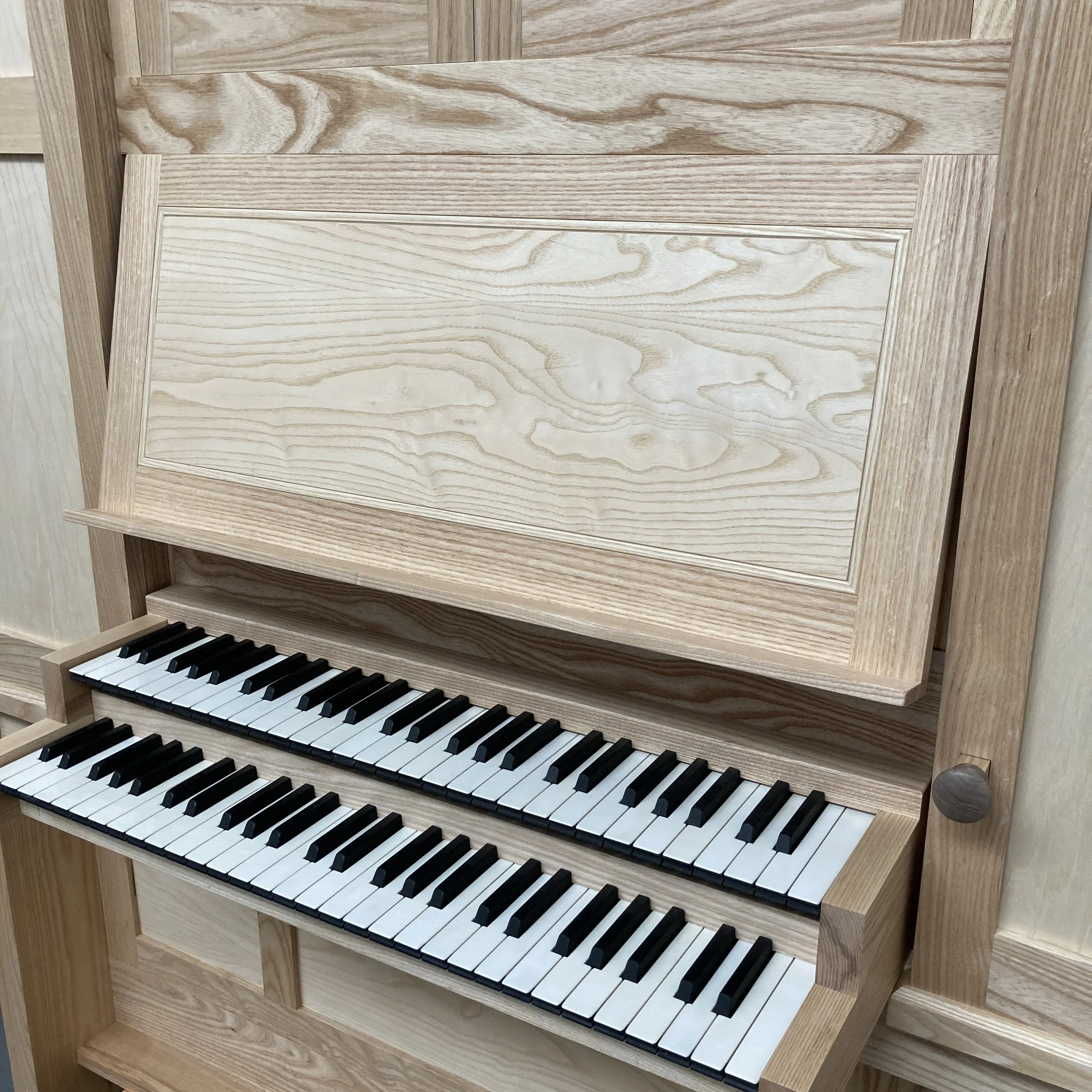

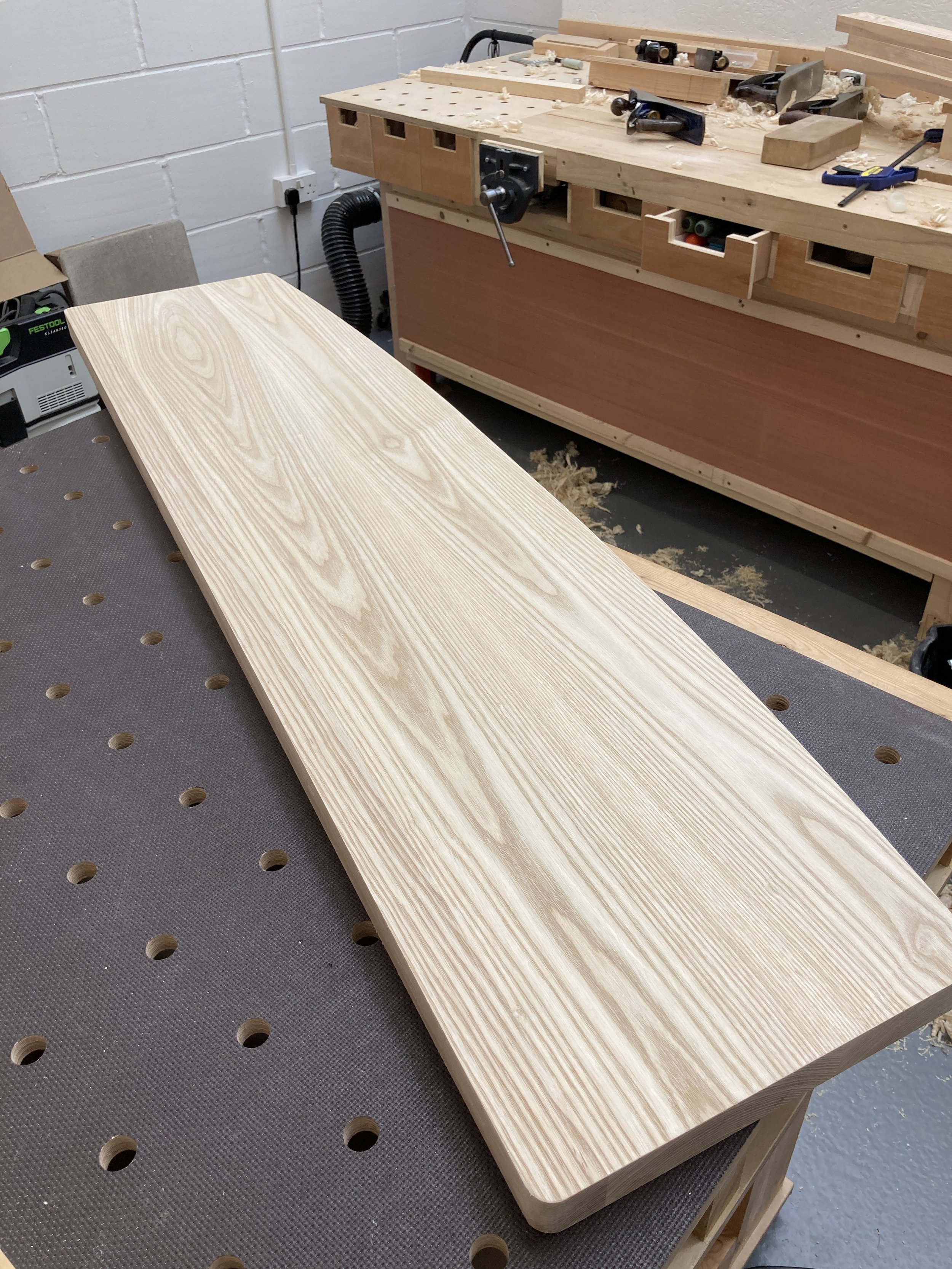

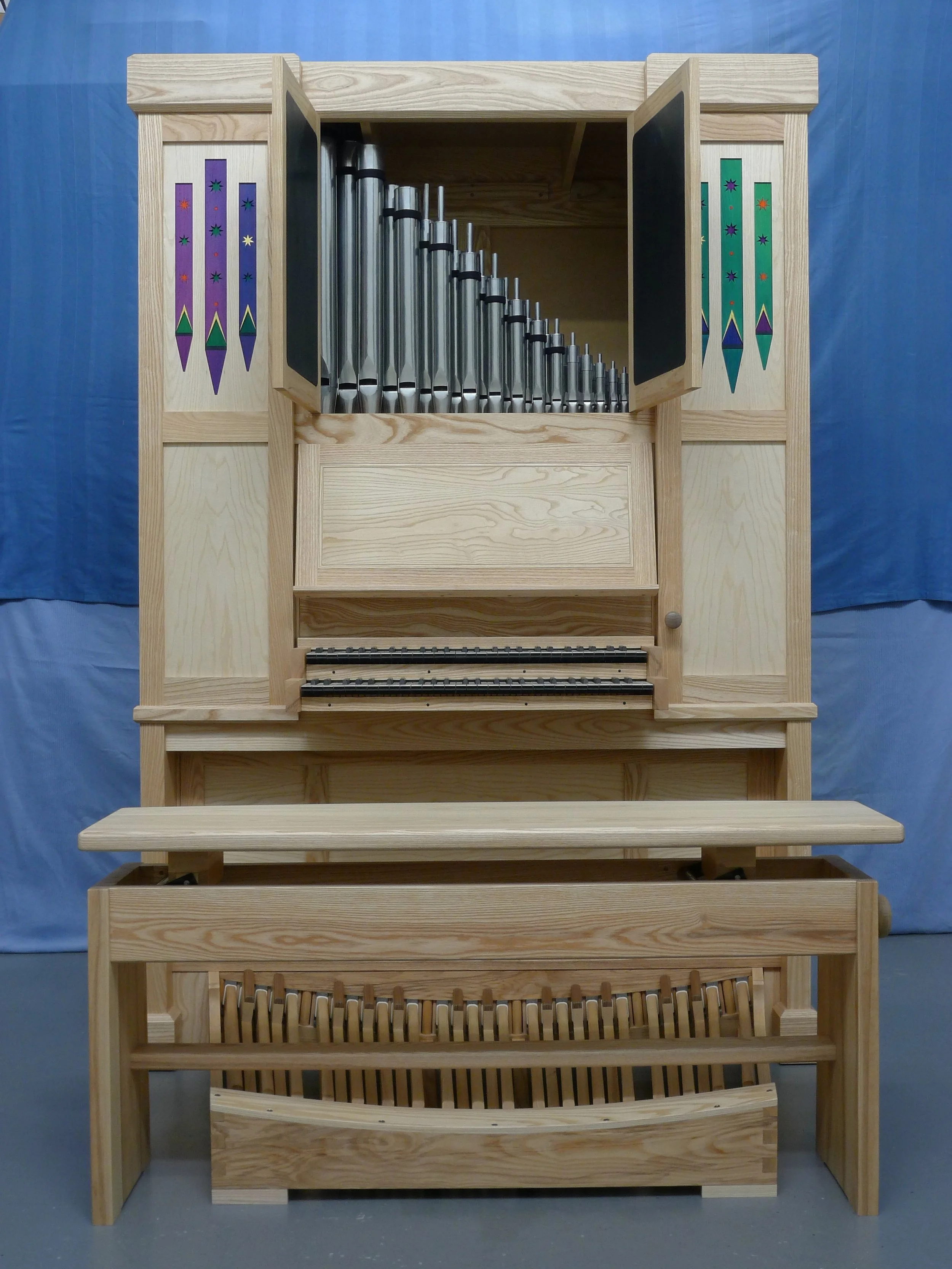

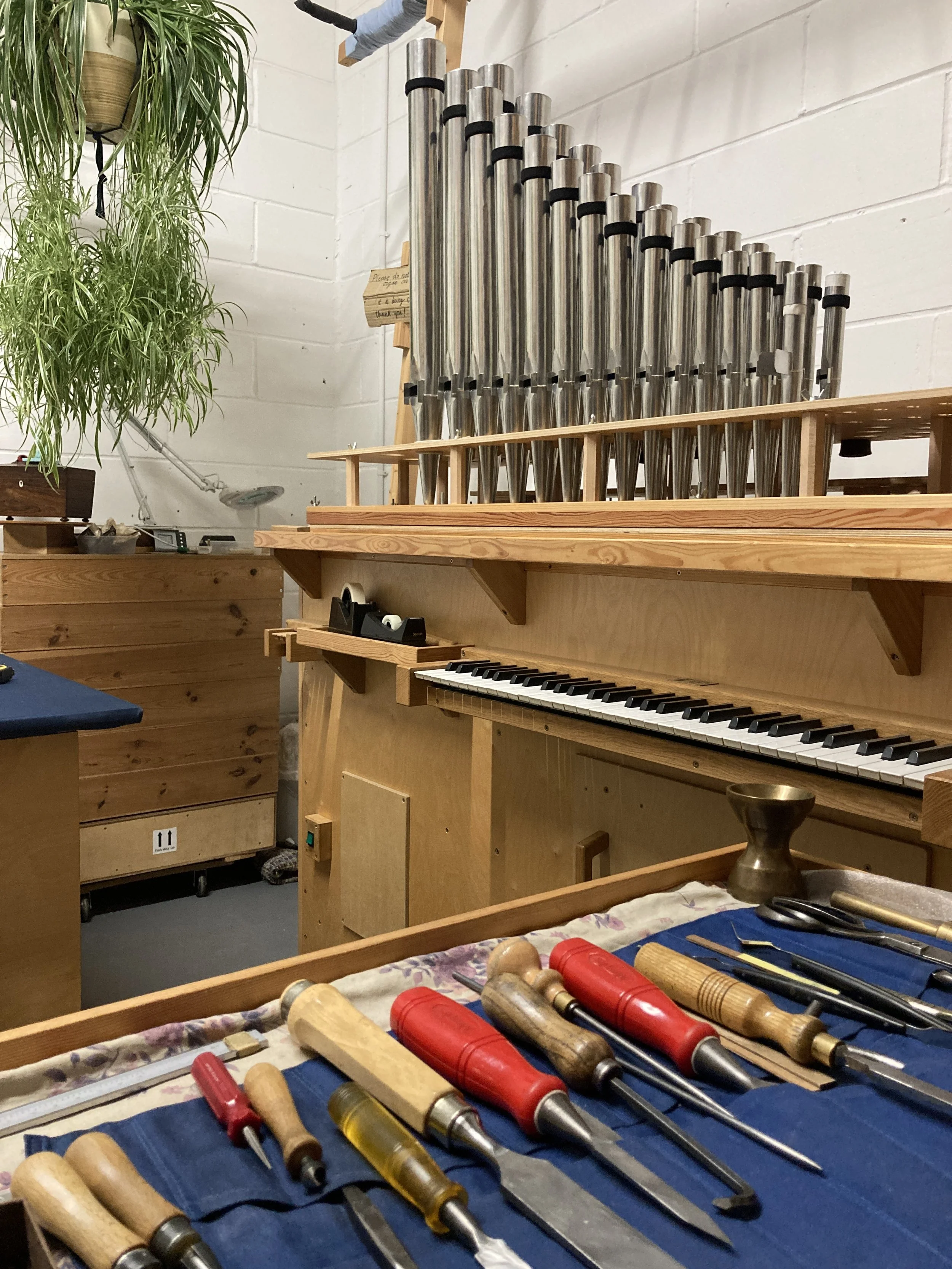

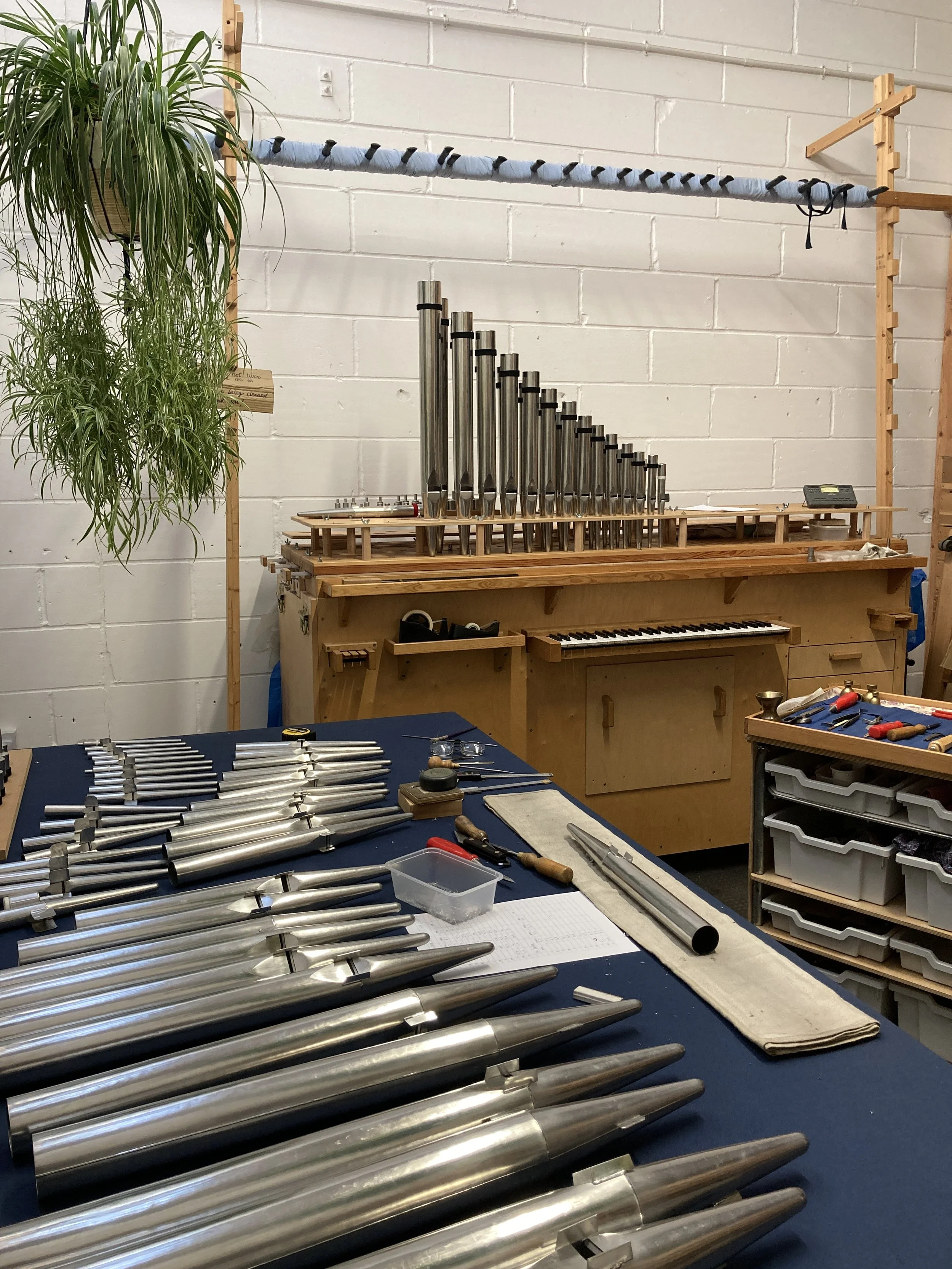

This two manual mechanical action organ, currently under construction in the workshop, is designed to cover all the basic requirements of a small practice instrument while also remaining as simple as possible to manufacture. Most parts are made in-house.

The organ is due for completion in Summer 2025.

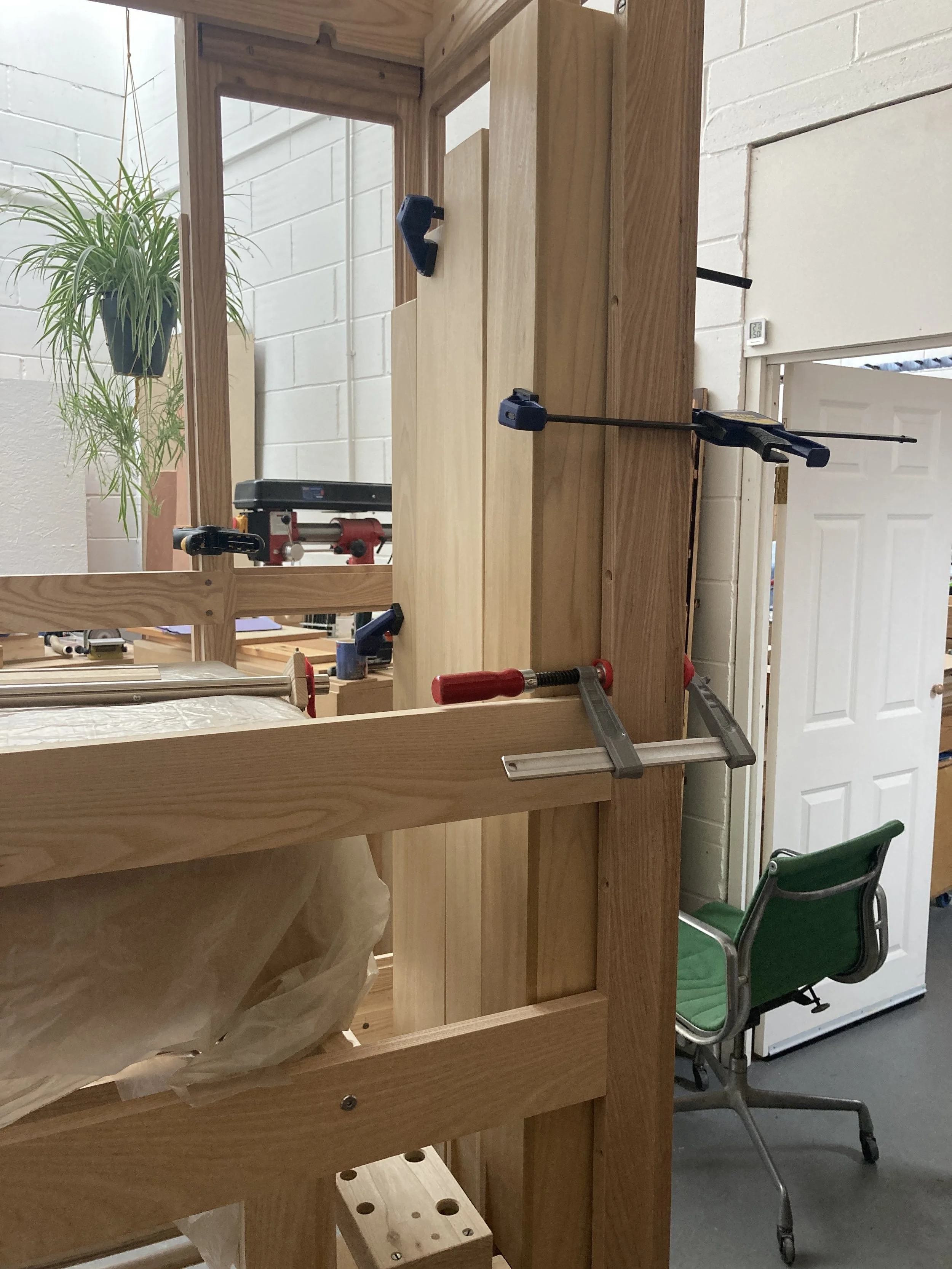

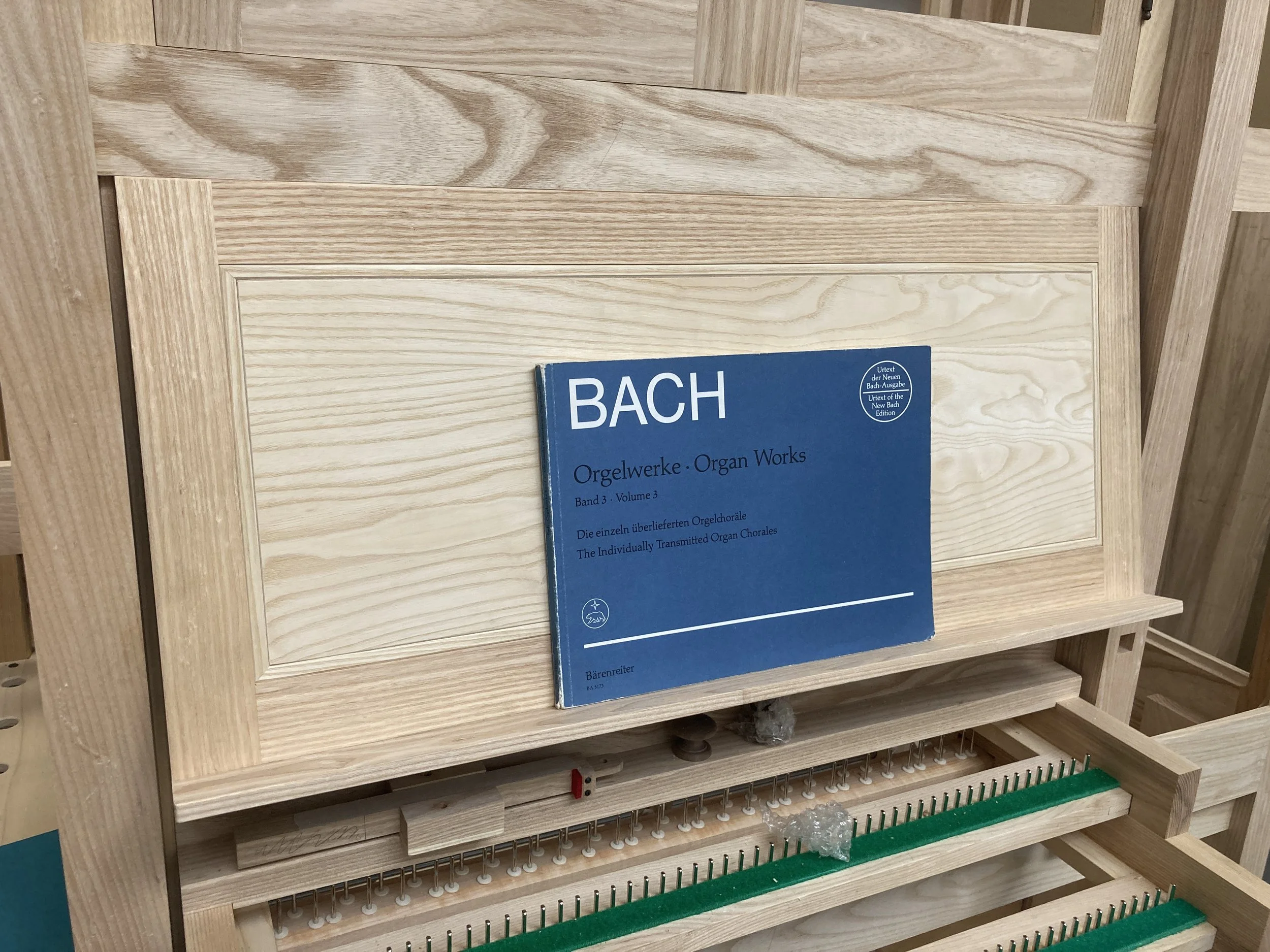

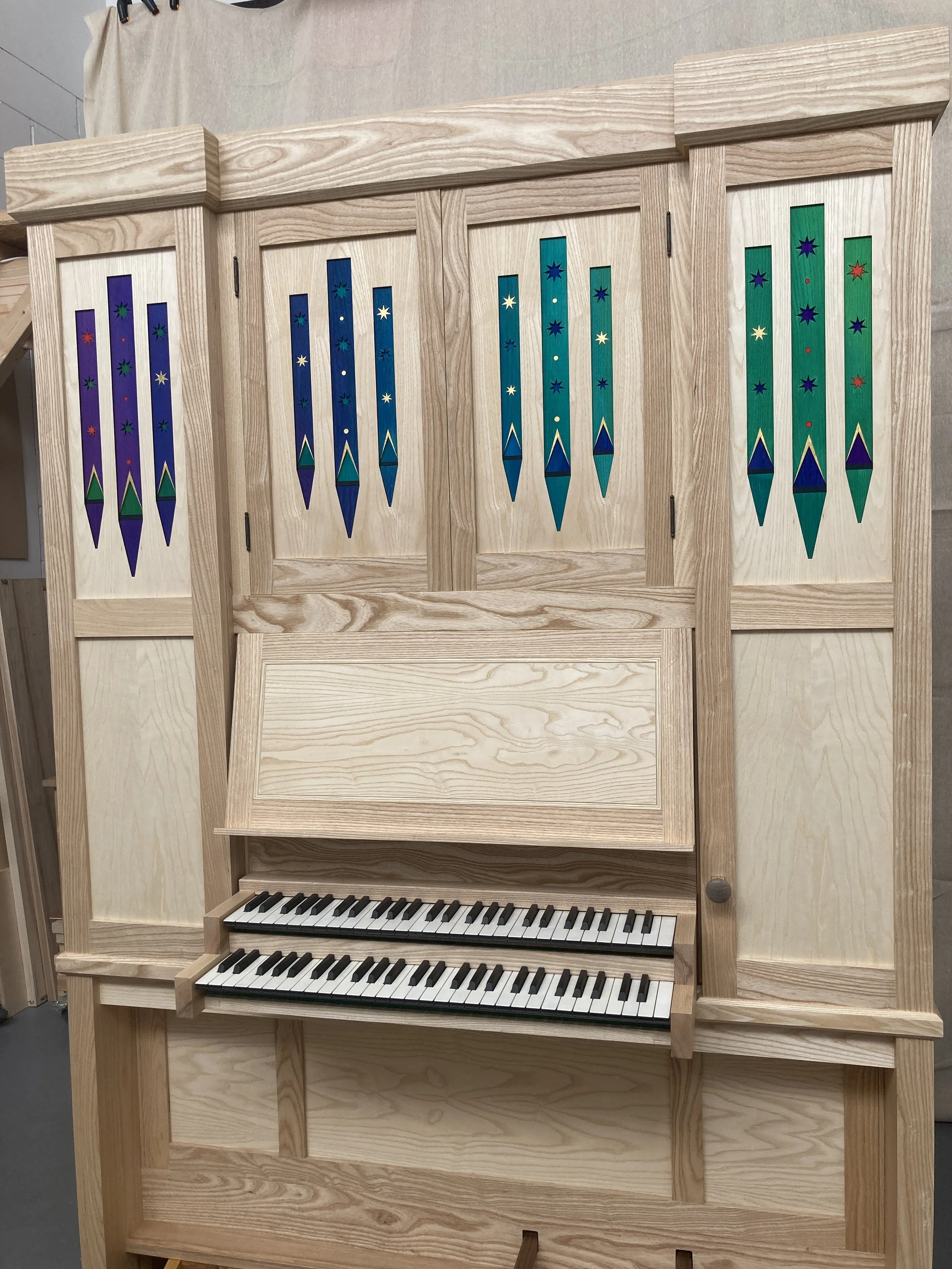

Case: Ash with Walnut details

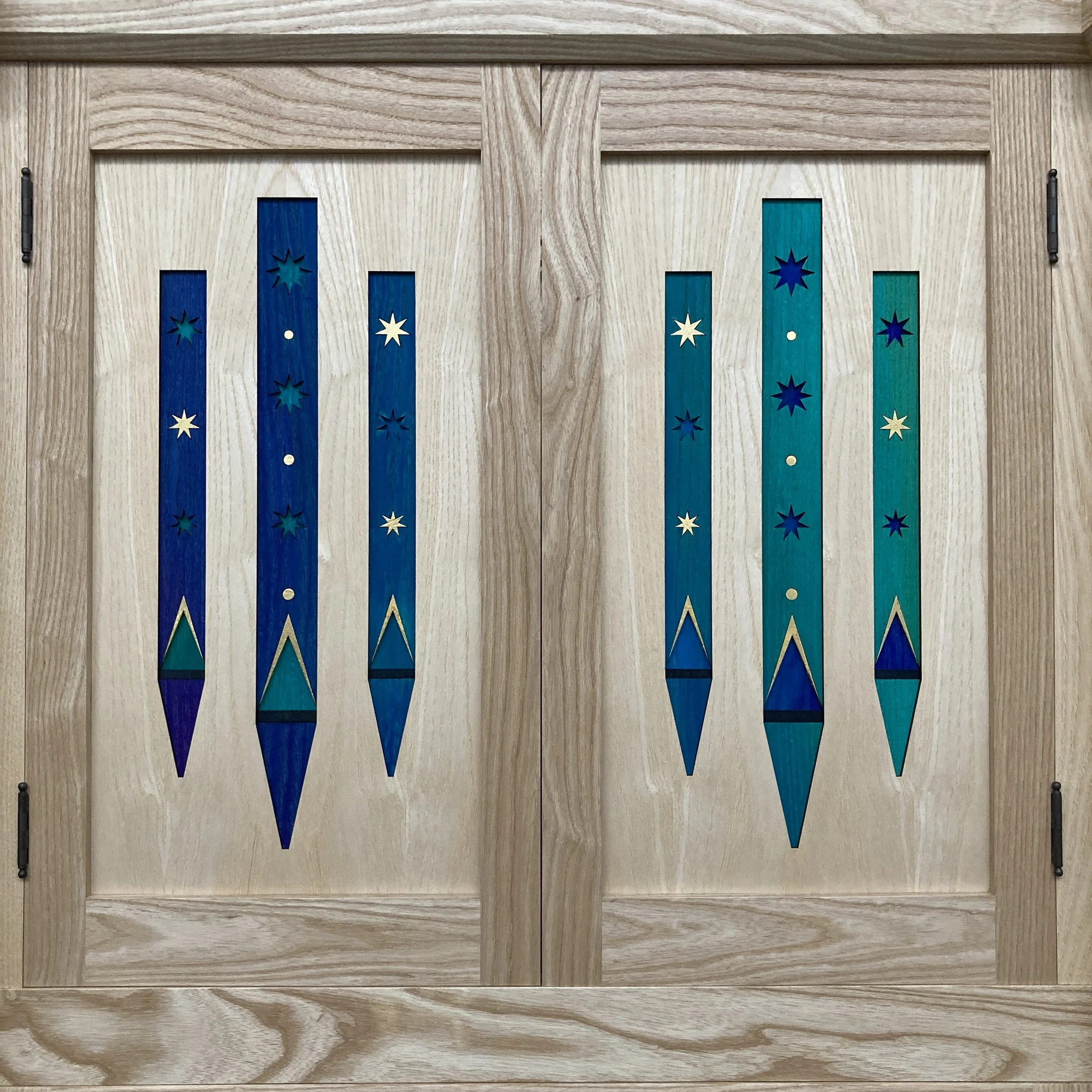

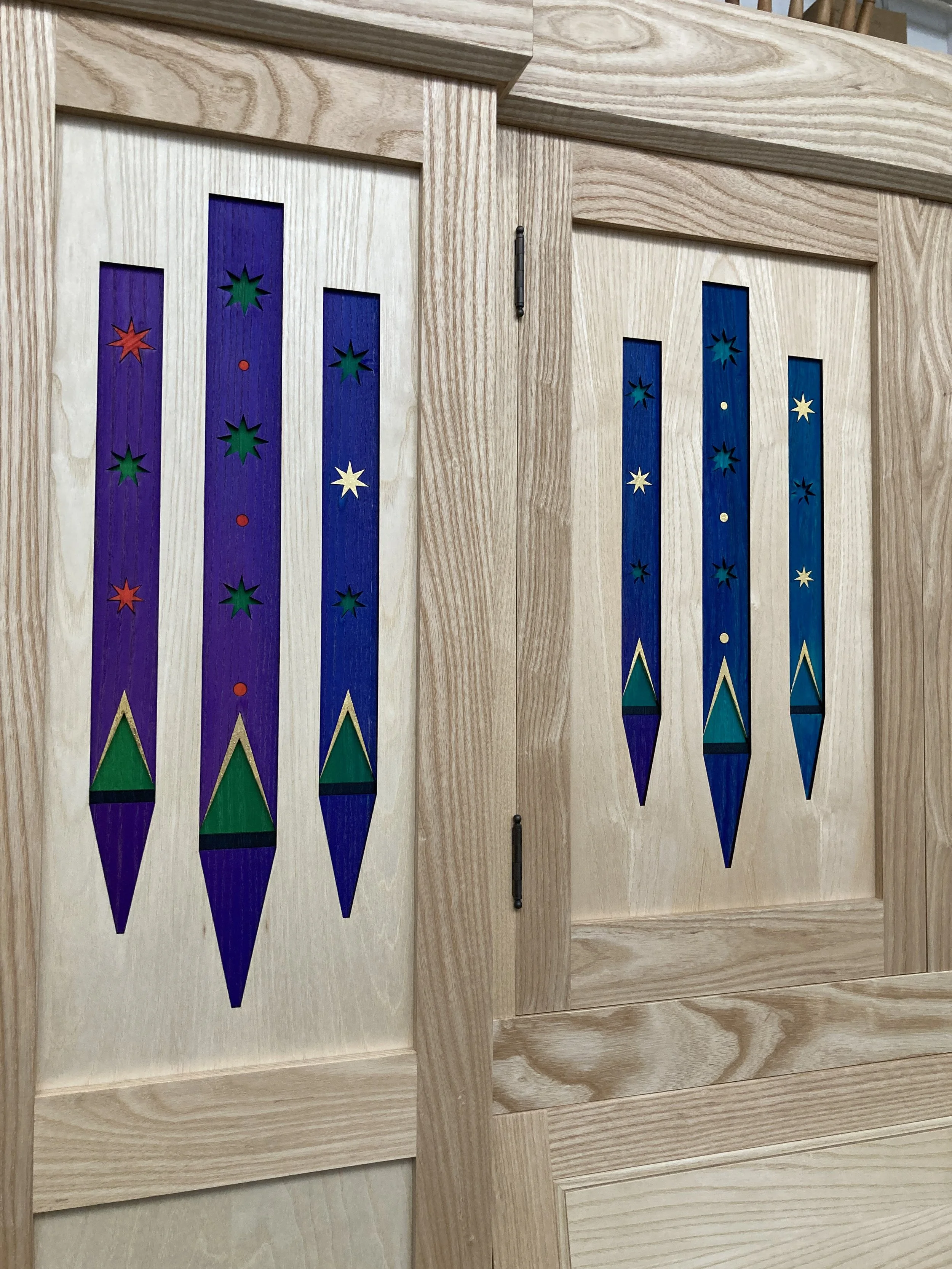

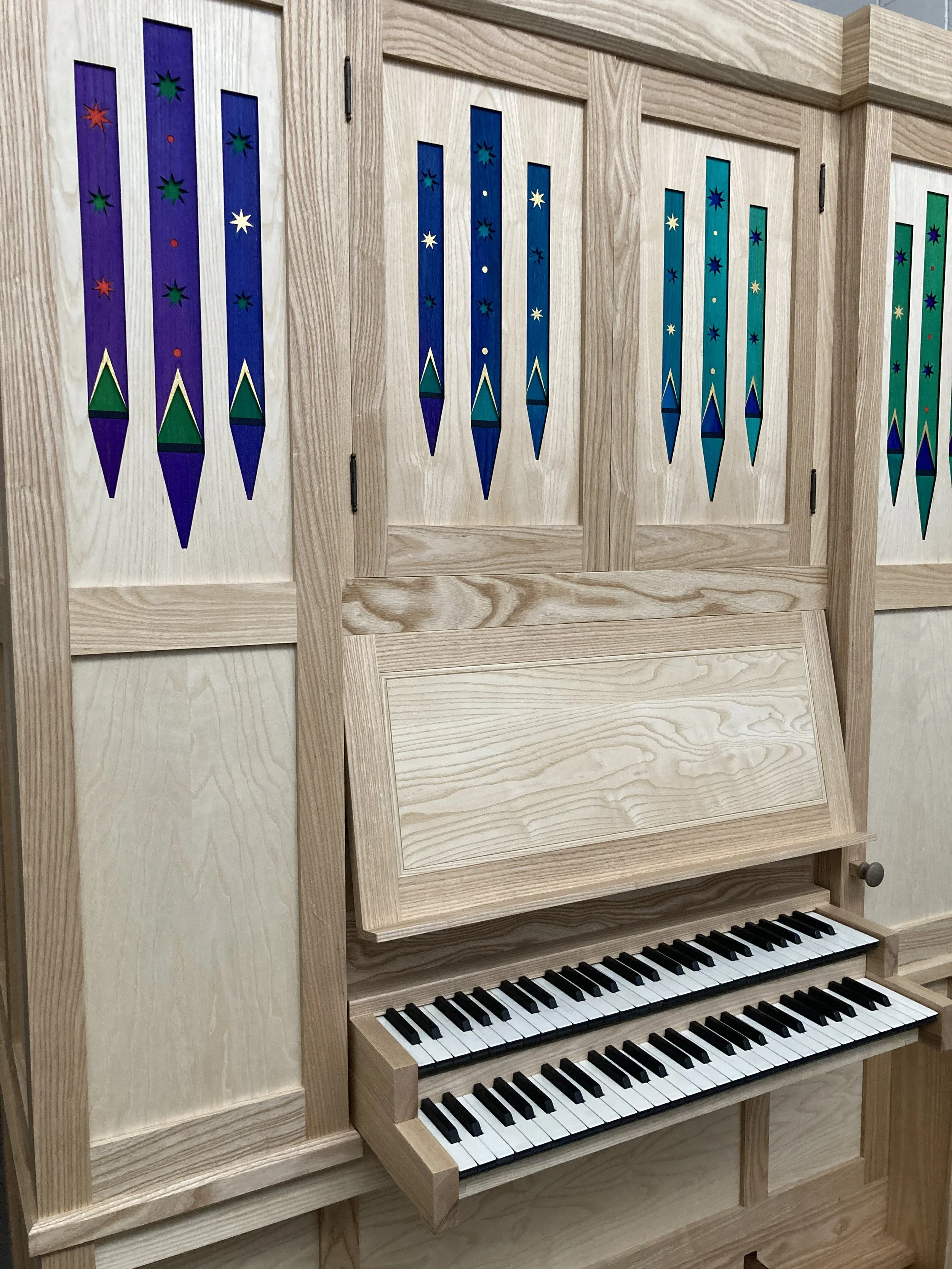

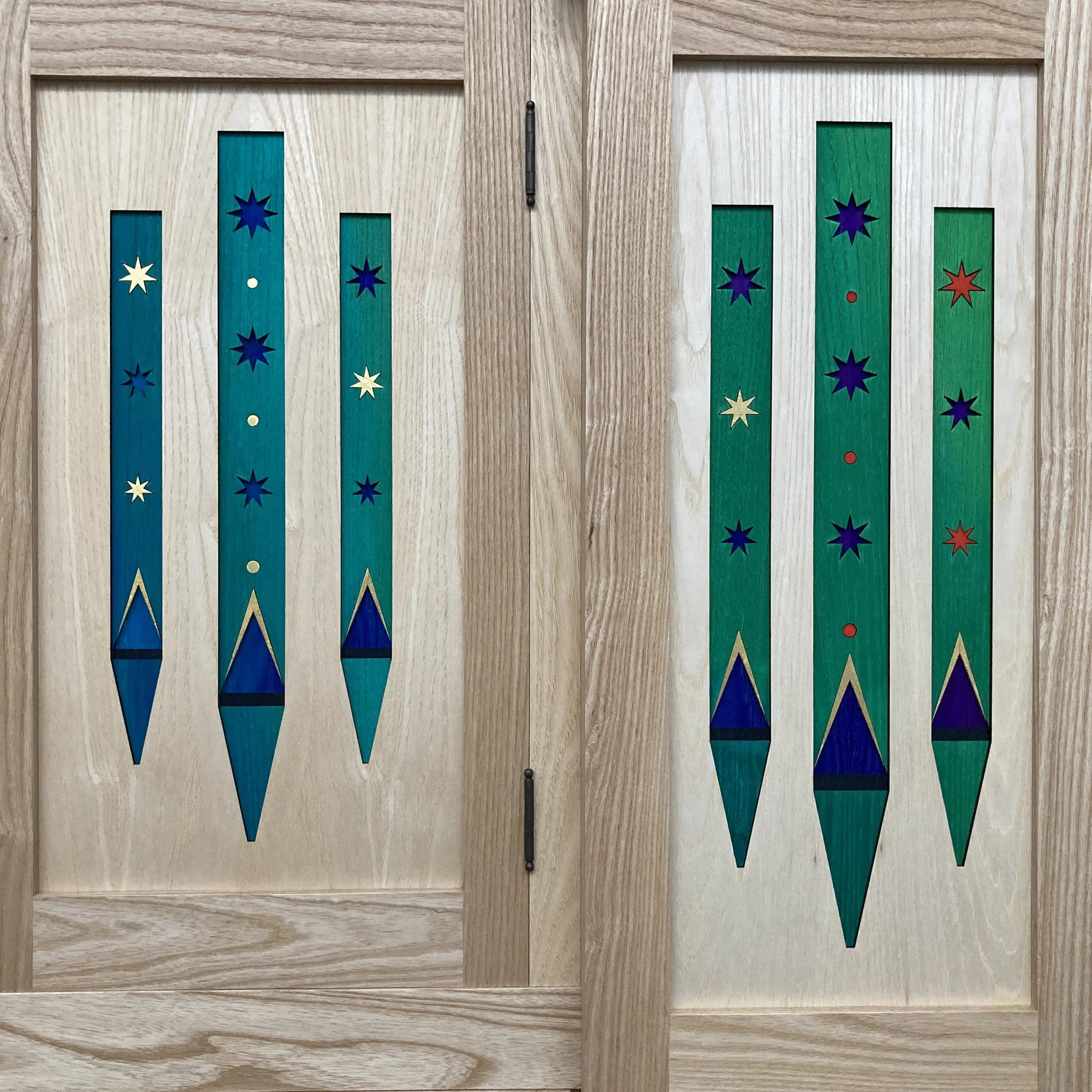

Decorations: Coloured inks and Gold leaf

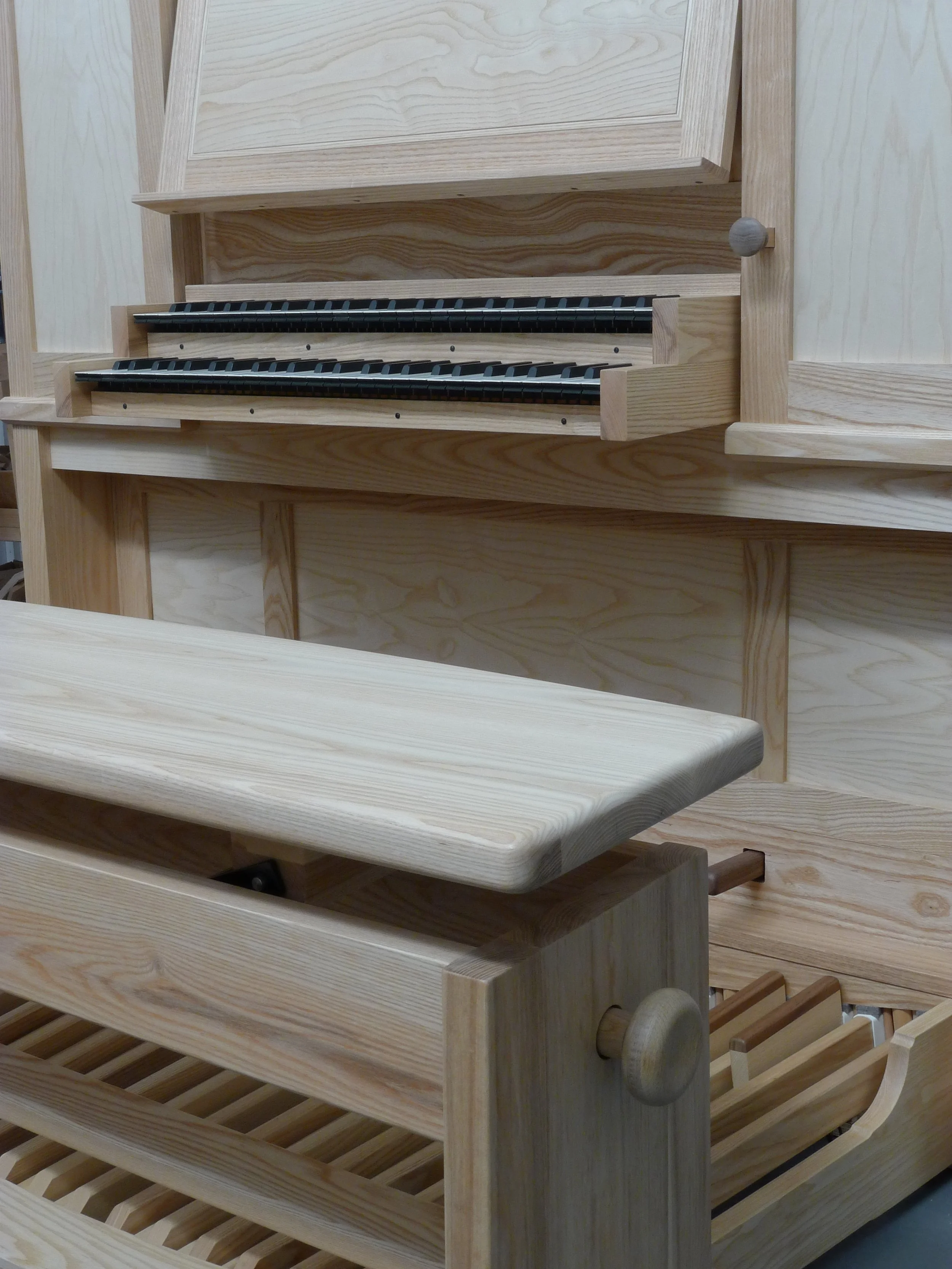

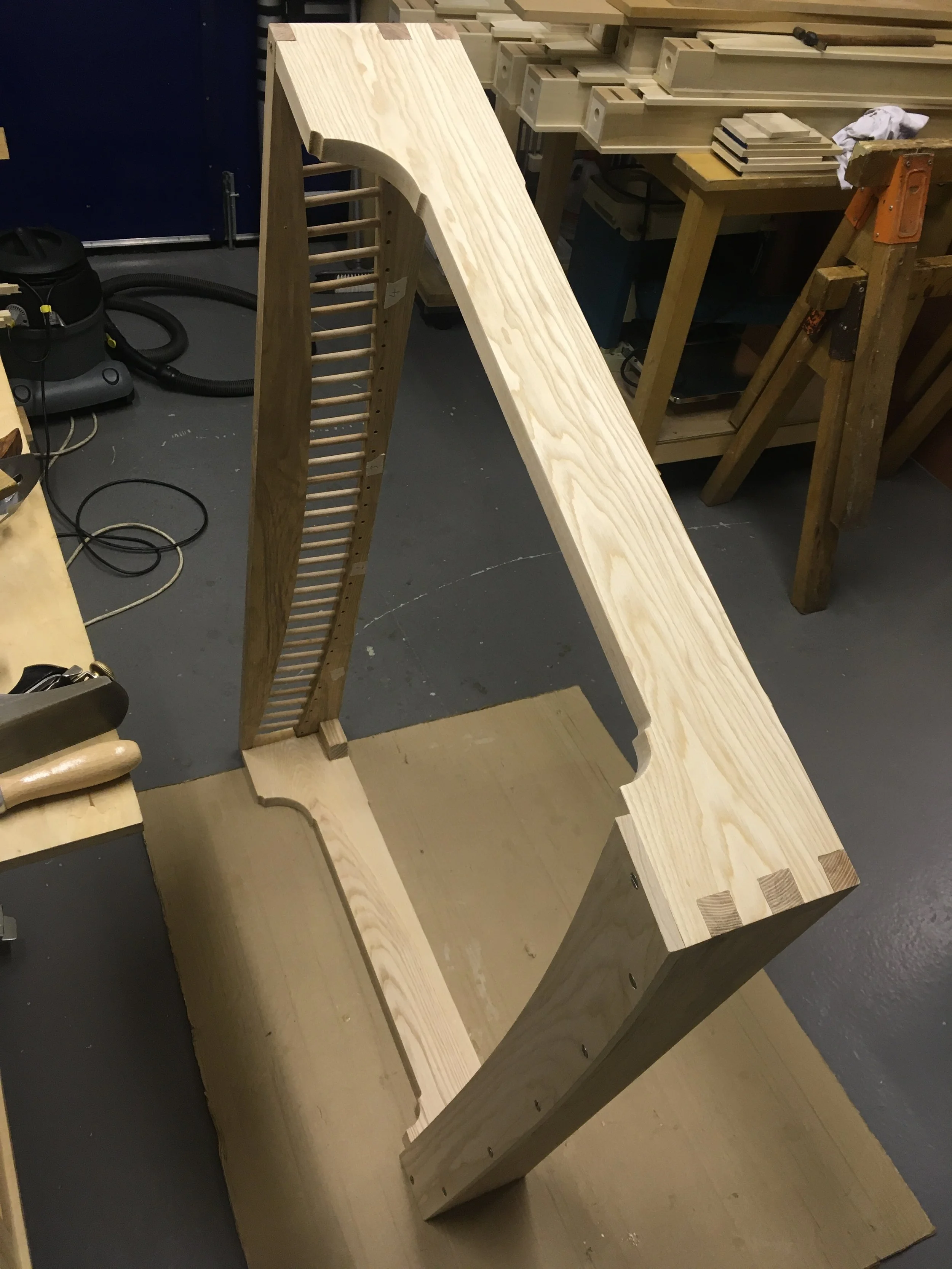

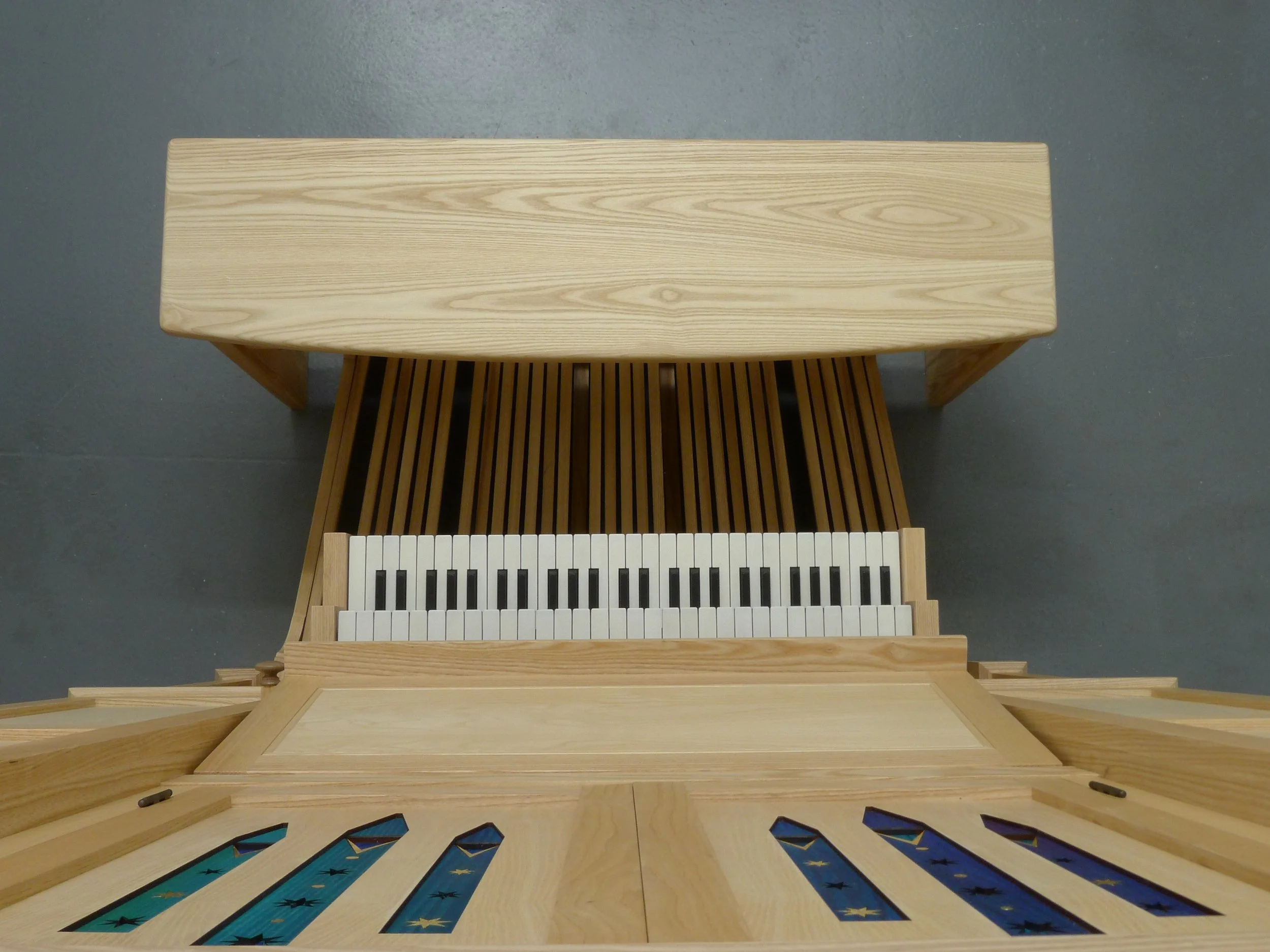

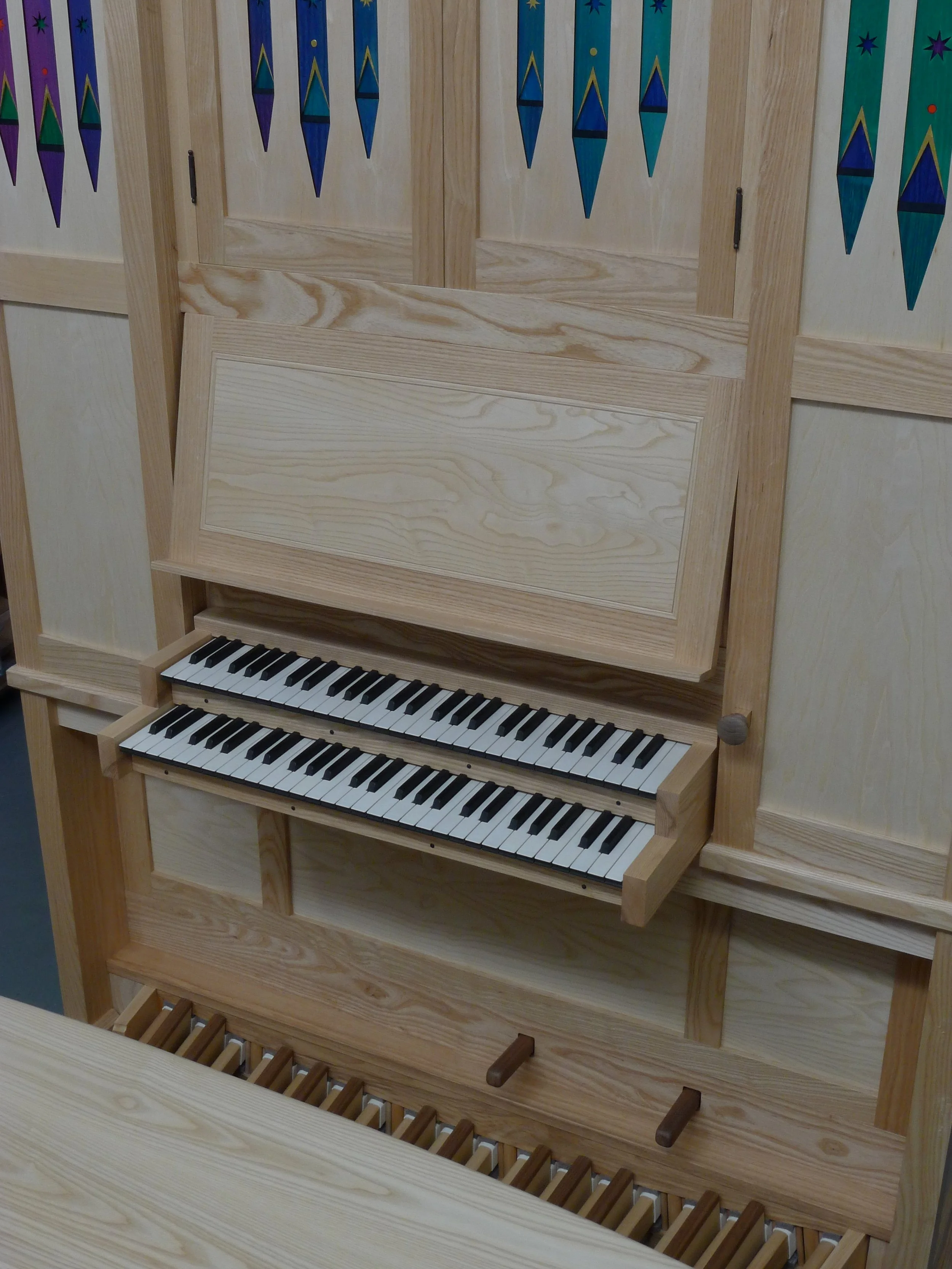

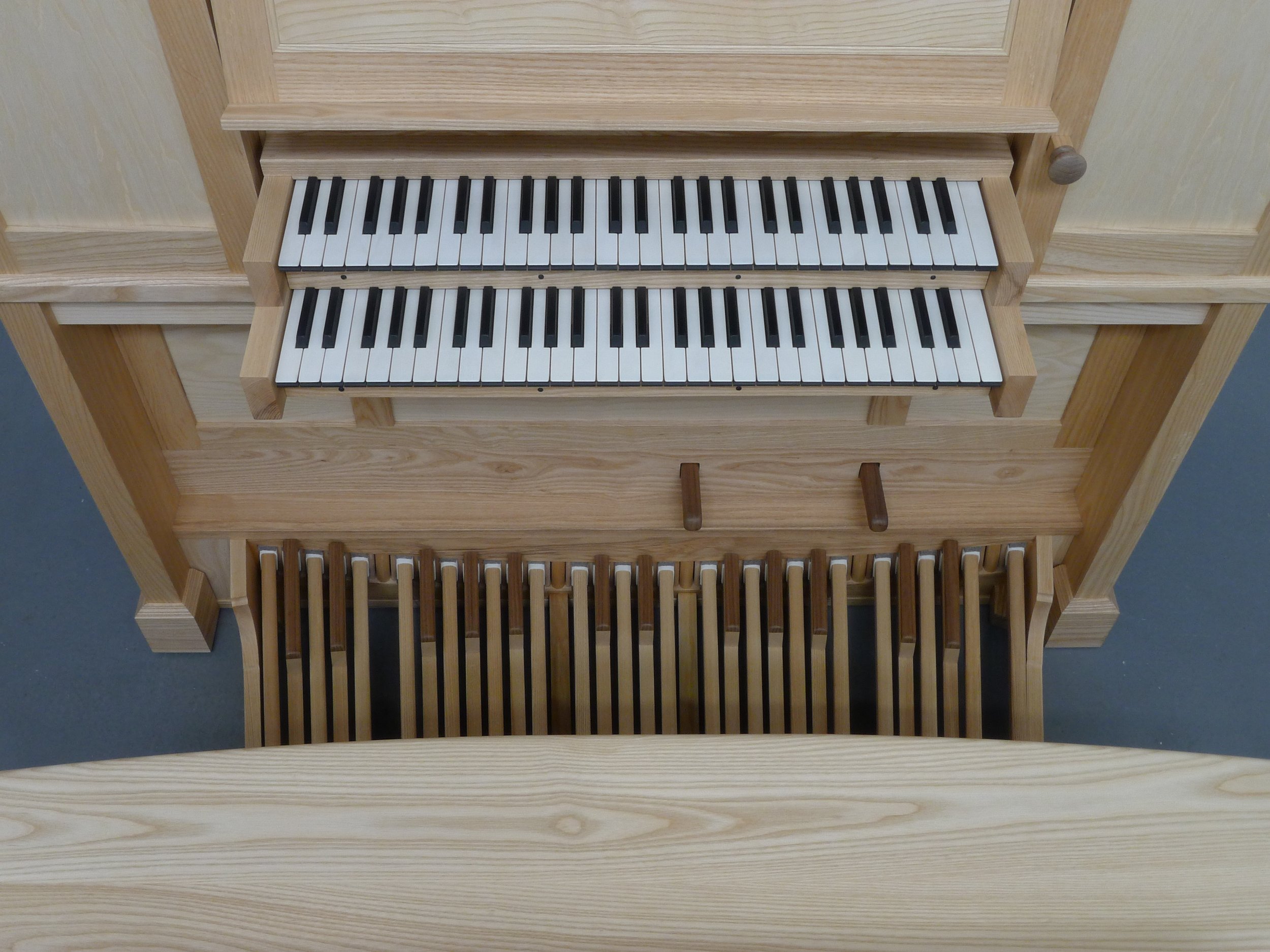

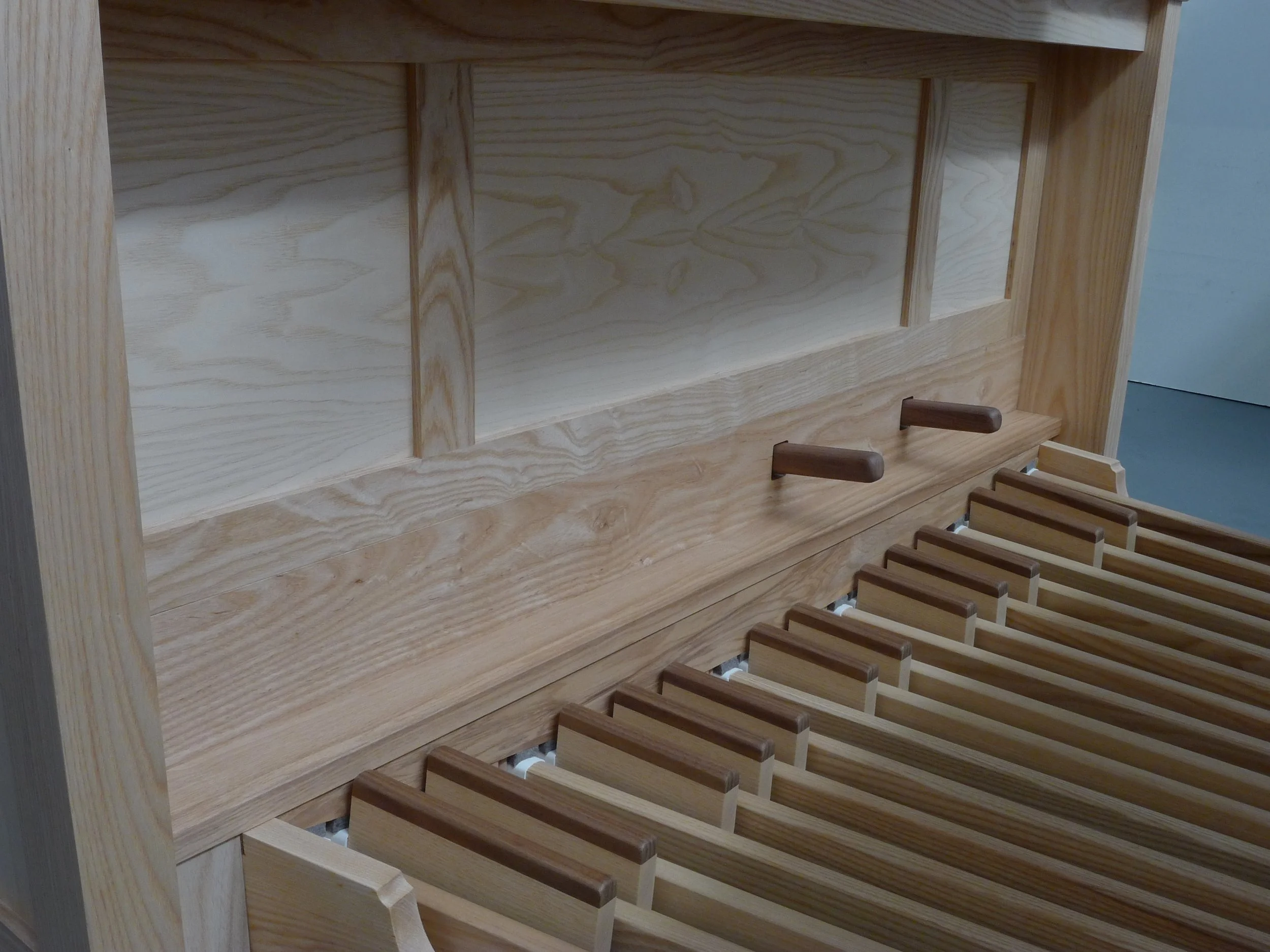

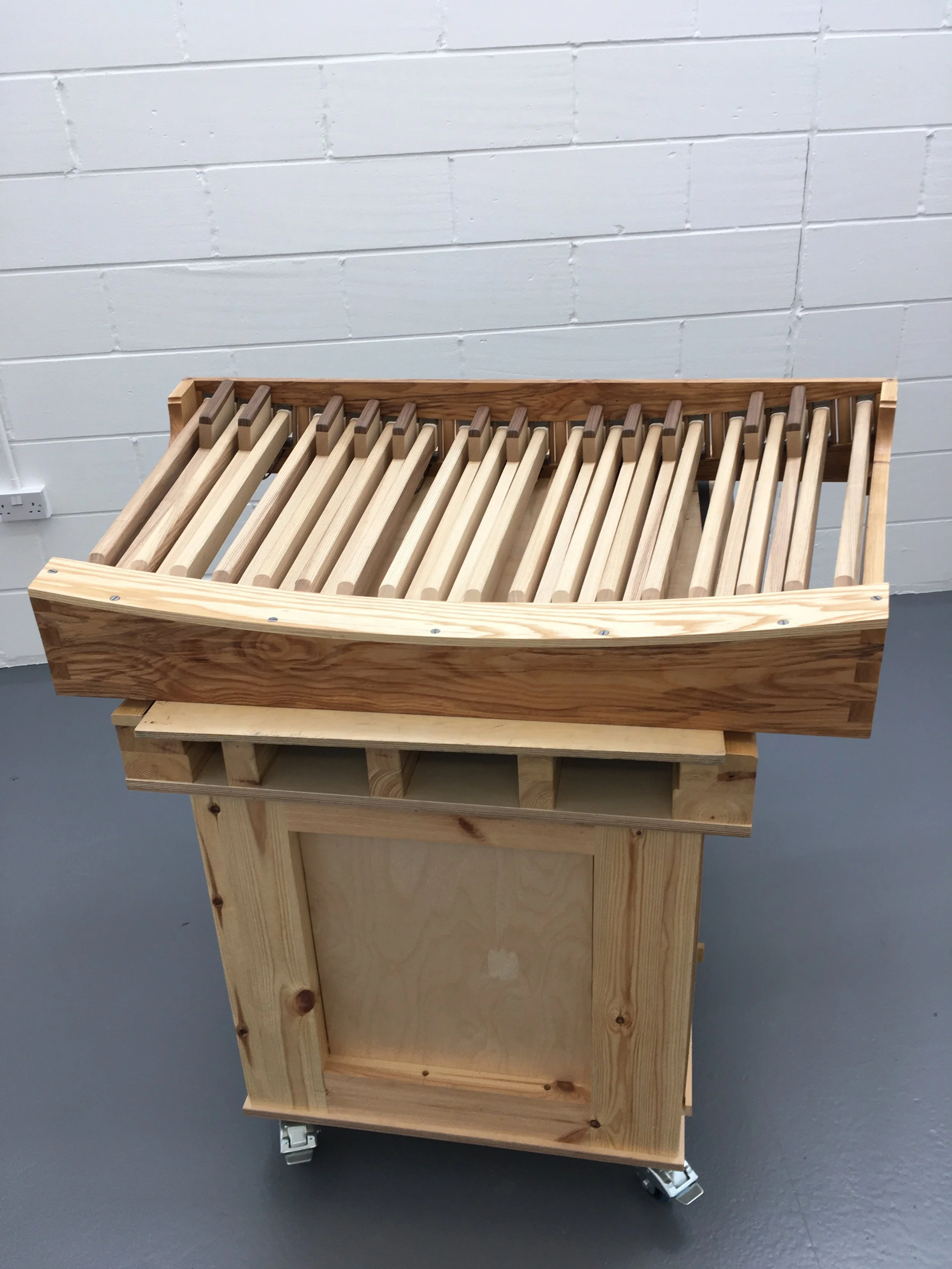

Pedalboard: BDO specification, radiating and concave, Ash with Walnut sharp tops

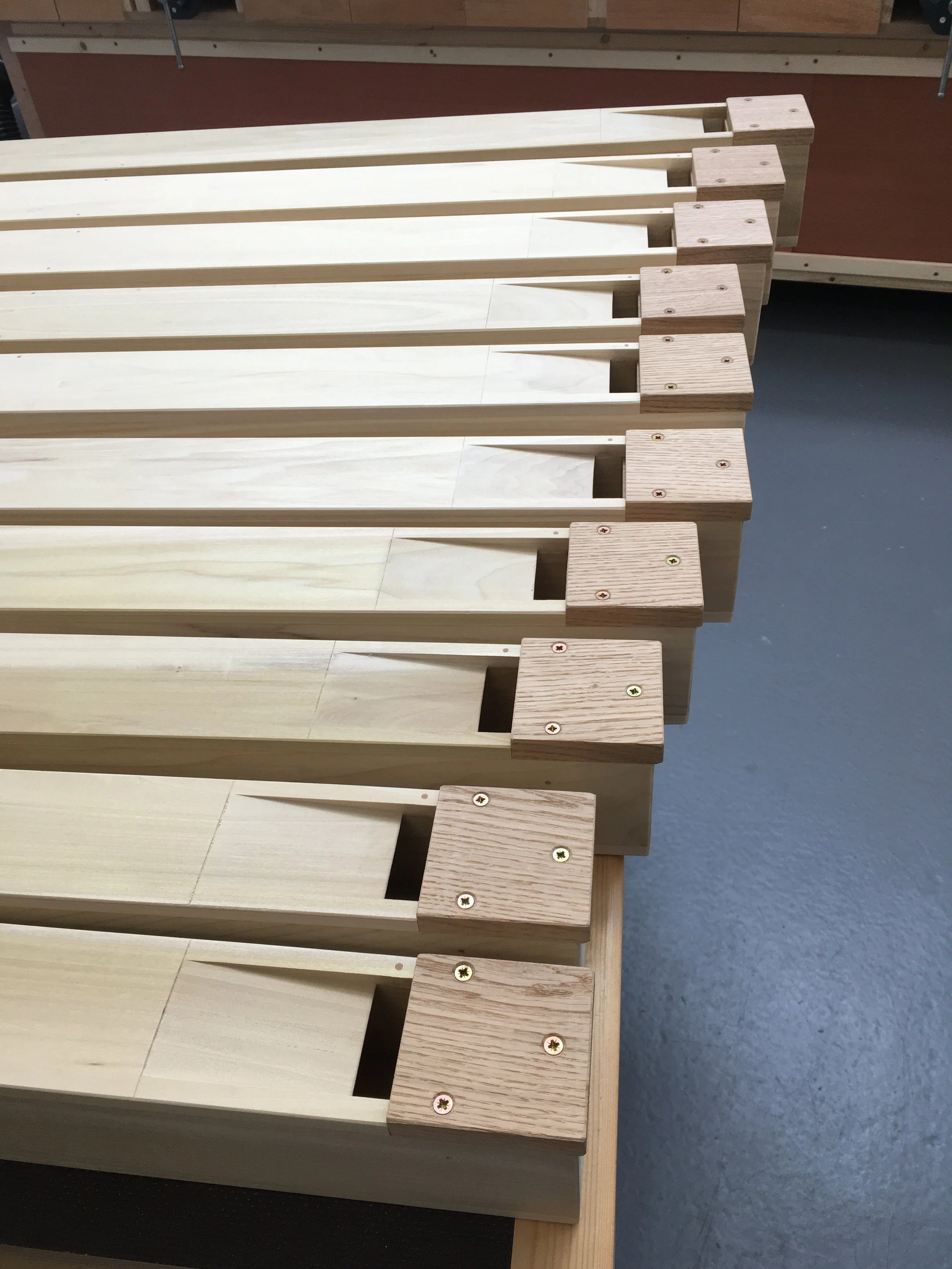

Wood pipes: Poplar with Oak faced blocks and caps (shared C1 to A10)

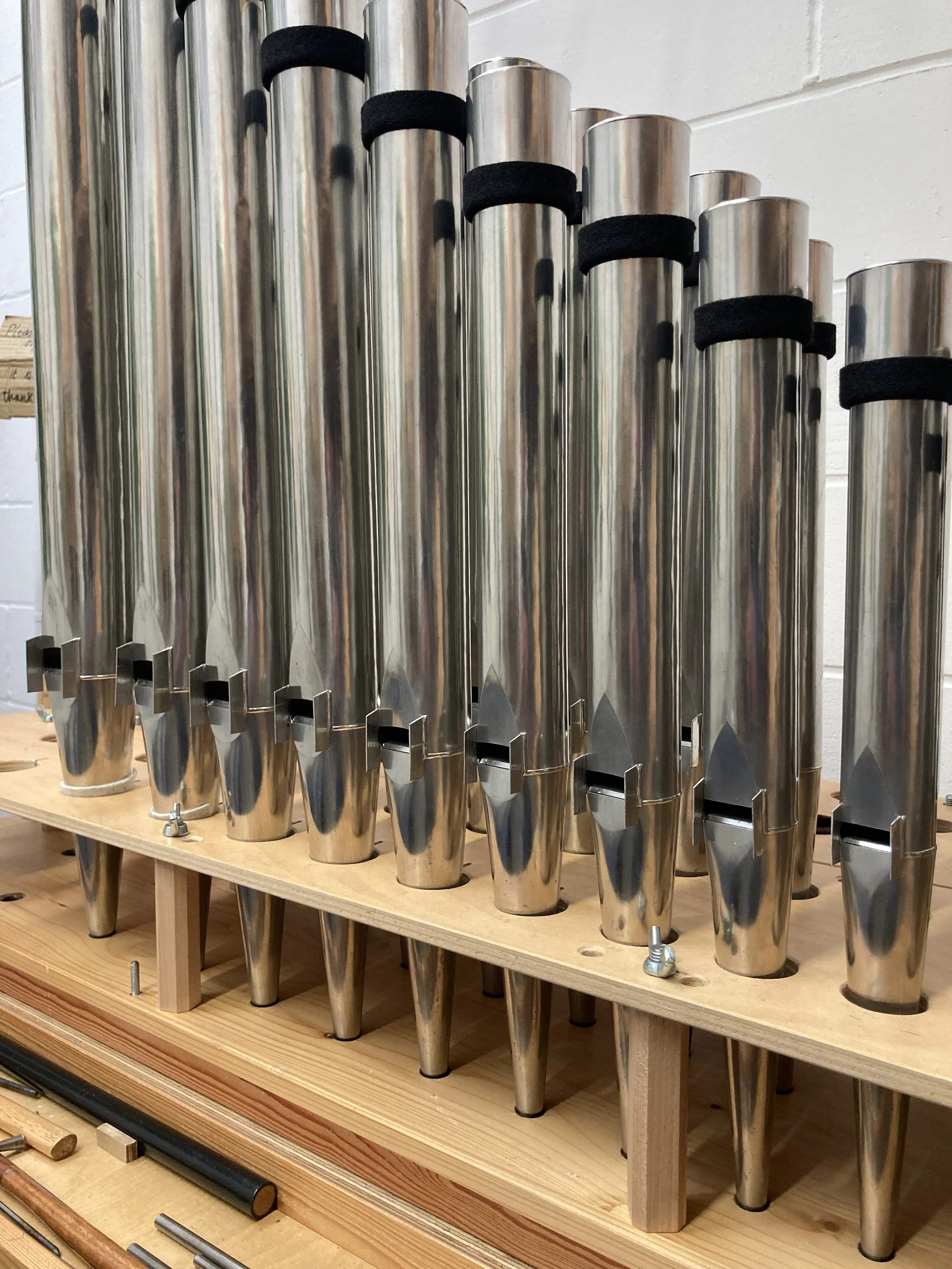

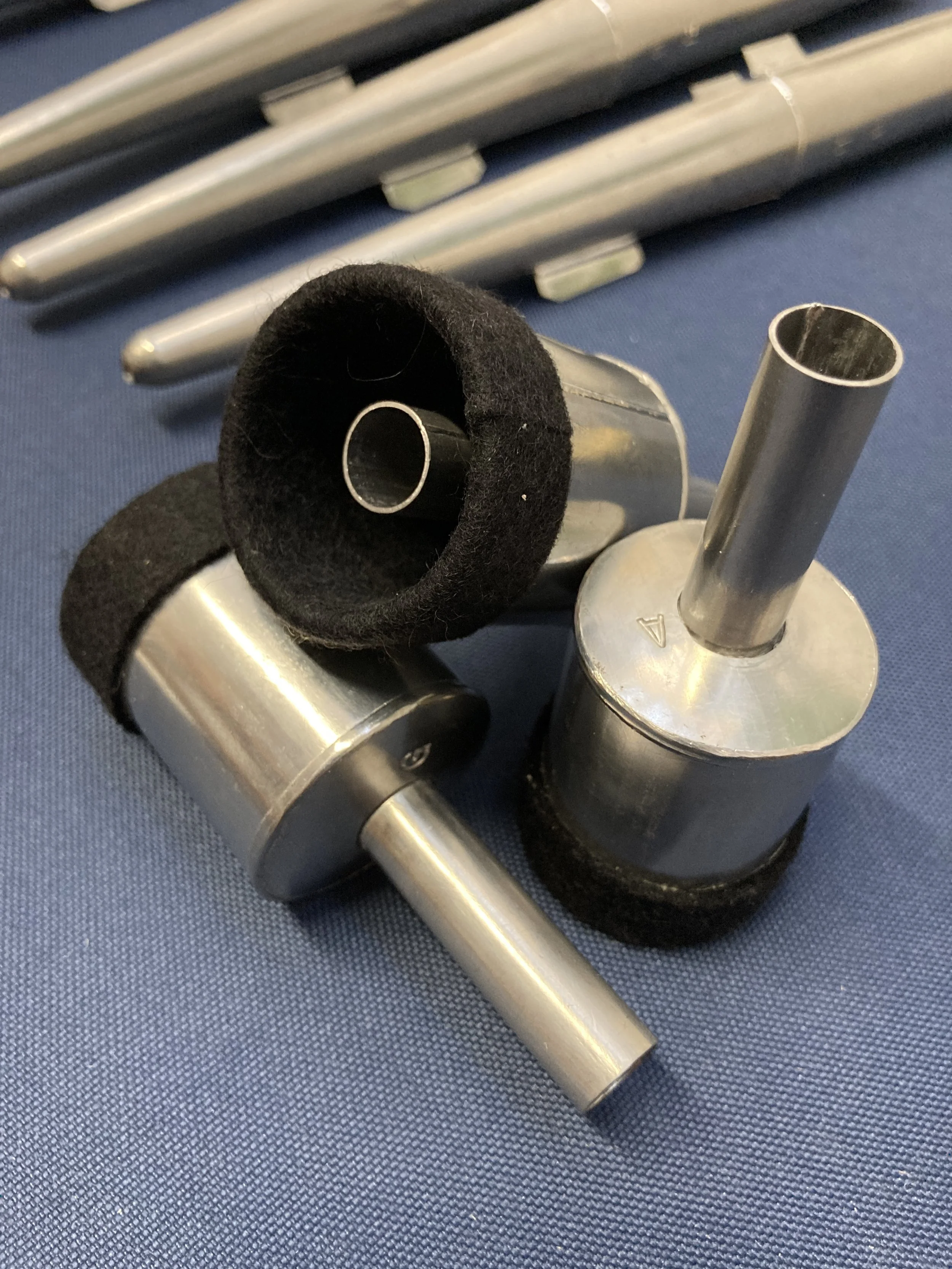

Manual I: Metal Gedact 8 (from A#11)

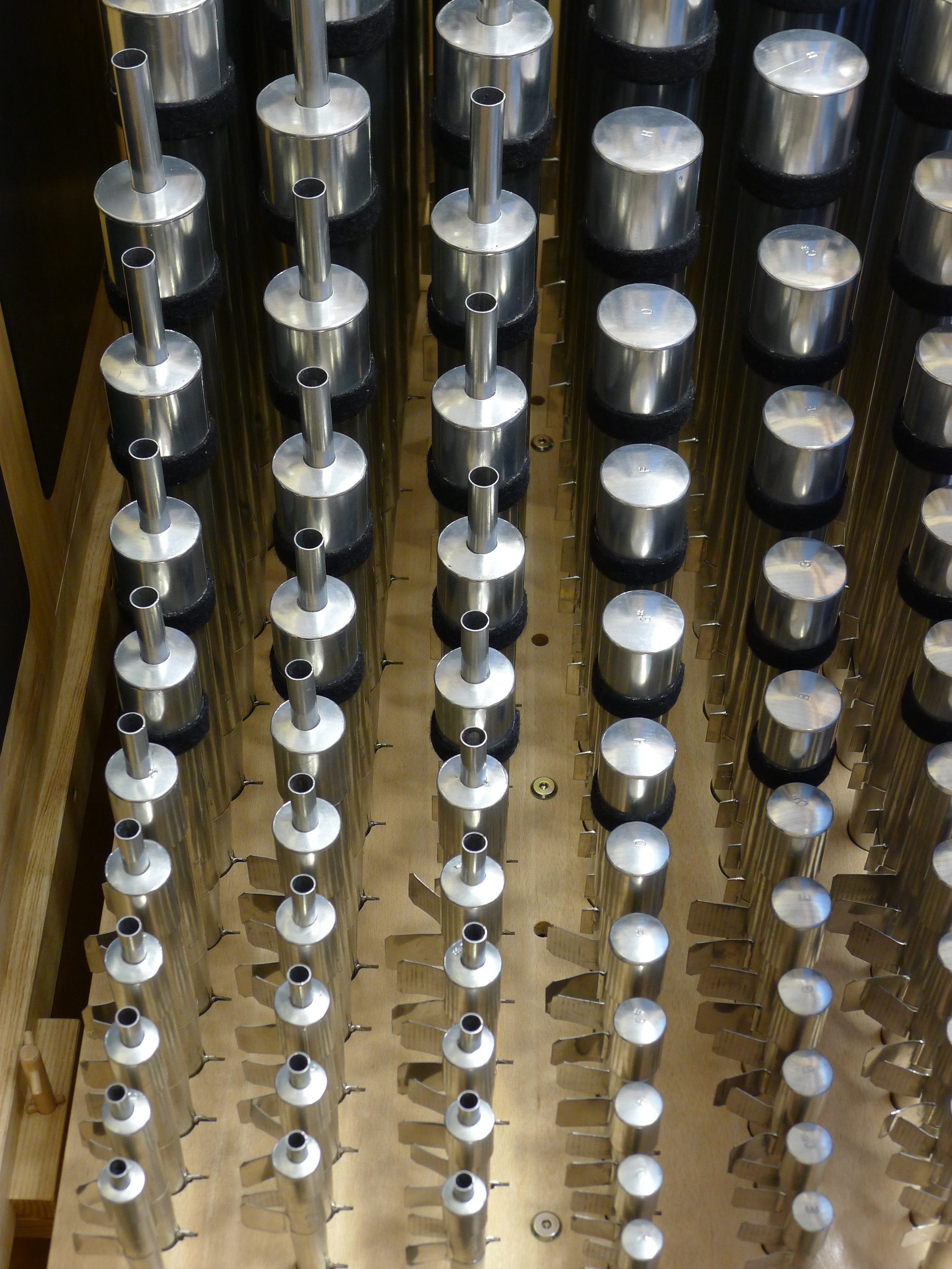

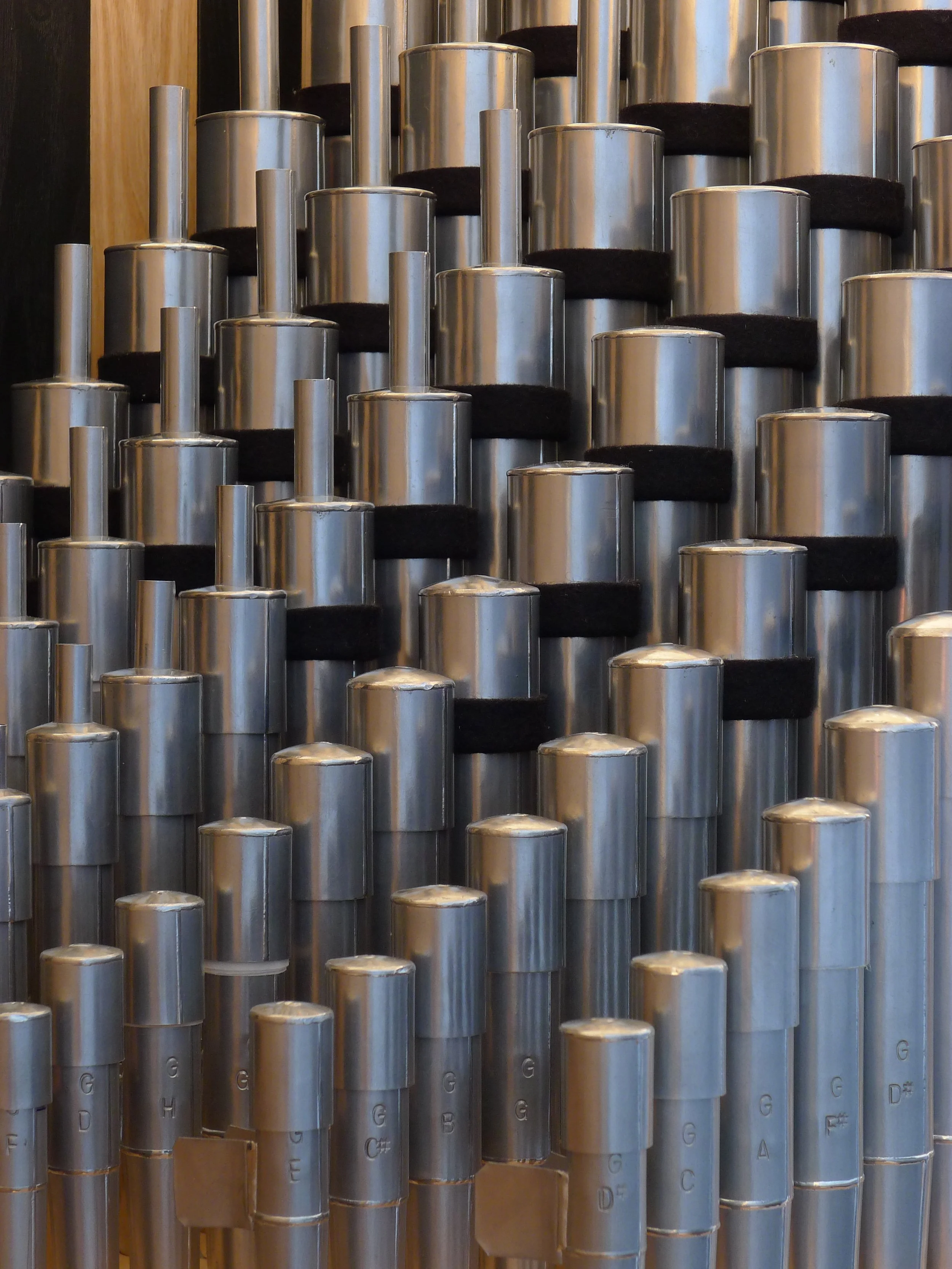

Manual II: Metal Chimney Flute 8 (from A#11)

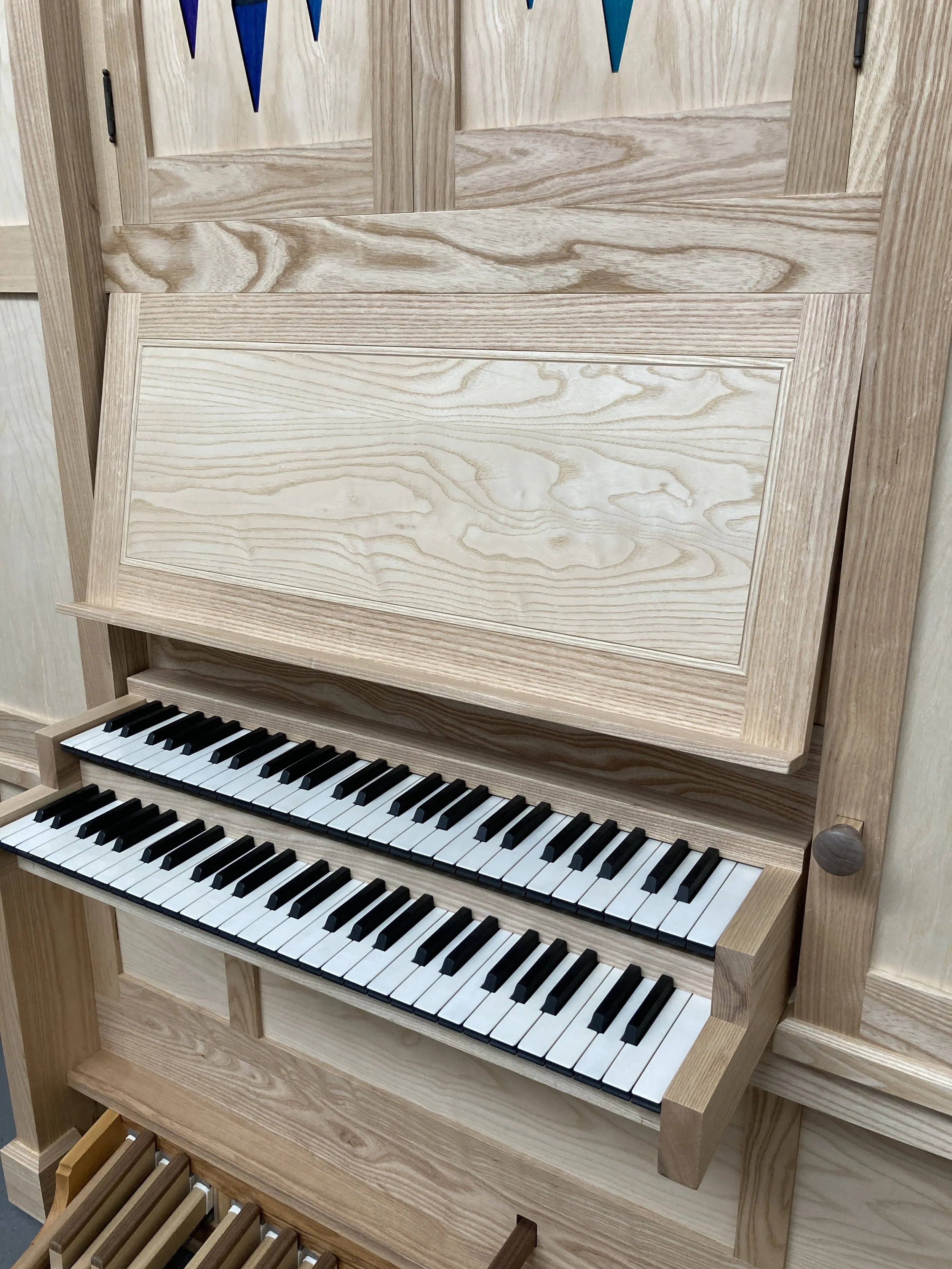

Compass: Manuals F54, Pedal F30

Couplers: II-I, I-Ped, II-Ped

Dimensions: Width 158cm, Height 232cm, Depth inc. pedalboard 140cm.
